Double Pass Transistor Logic (DPL)

Engineering Lecture Notes Pdf

  • Double Pass Transistor Logic is a double rail form of CMOS transmission gate optimized to use single pass transistors where only a known 0 or 1 needs to be passed.
  • It passes good high and low logic levels without the need for level restoring devices.
  • DPL uses both nMOS and pMOS switches to realize the desired functions.
  • This provides a full swing on the output.
  • No extra transistors are required for swing restoration.
  • A DPL gate consists of both true and complementary inputs / outputs and hence is a dual rail logic circuit.

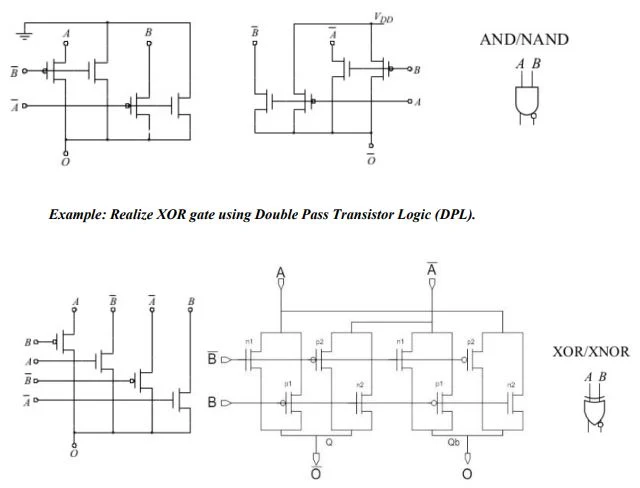

Realize XOR gate using Double Pass Transistor Logic (DPL)


Synthesis Rules

  • Two NMOS branches cannot be overlapped covering logic 1s. Similarly, two PMOS branches cannot be overlapped covering logic 0s.
  • Pass signals are expressed in terms of input signals or supply. Every input vector has to be covered with exactly two branches.
  • At any time, excluding transitions, exactly two transistor branches are active (any of the pairs NMOS/PMOS, NMOS/NMOS and PMOS/PMOS are possible), i.e. they both provide output current.


Complementary Principle: Complementary logic function in DPL is generated after the following modifications:


  • Exchange PMOS and NMOS devices. Invert all pass and gate signals


Duality Principle: Dual logic function in DPL is generated when:


  • PMOS and NMOS devices are exchanged, and VDD and GND signals are exchanged.
